Dimple Board

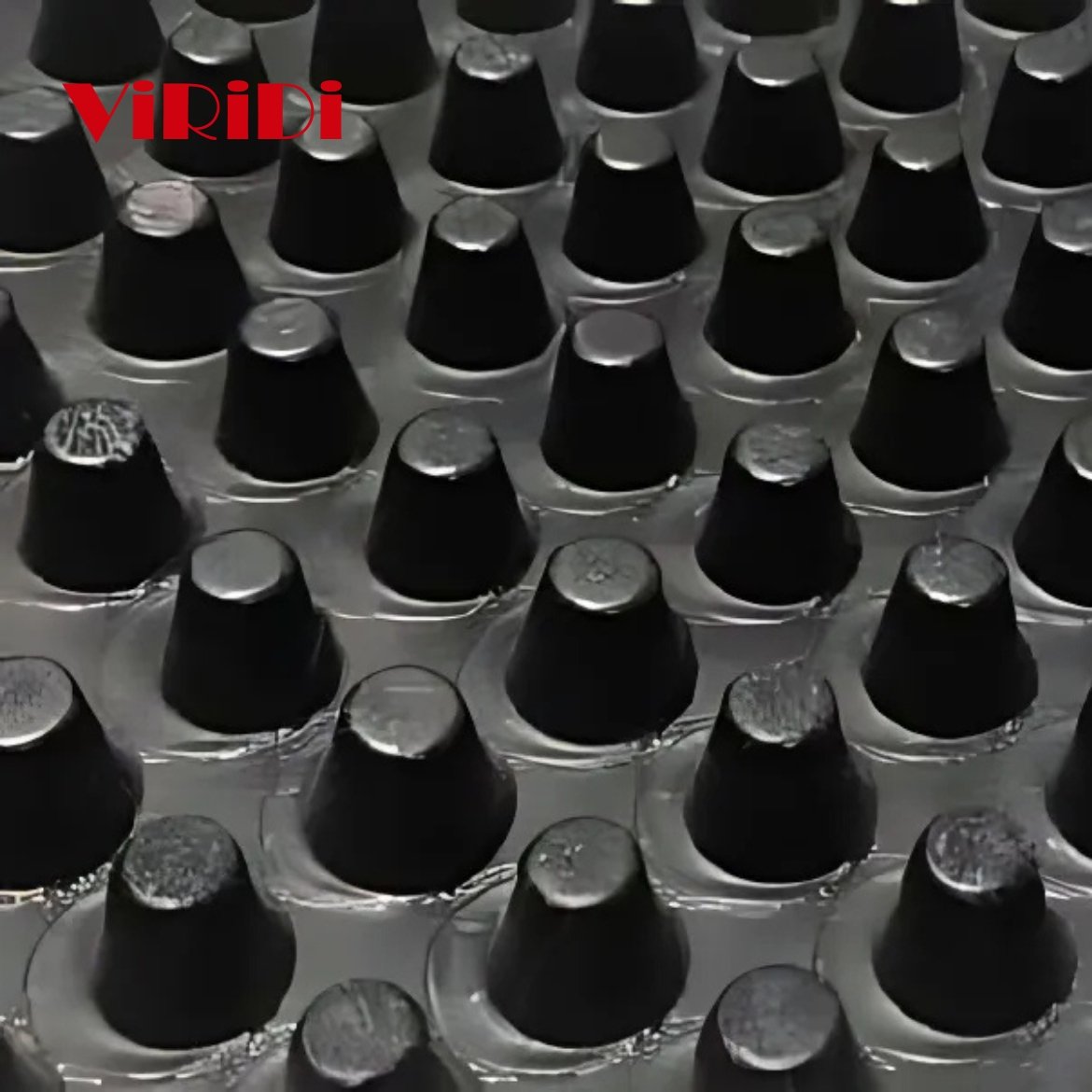

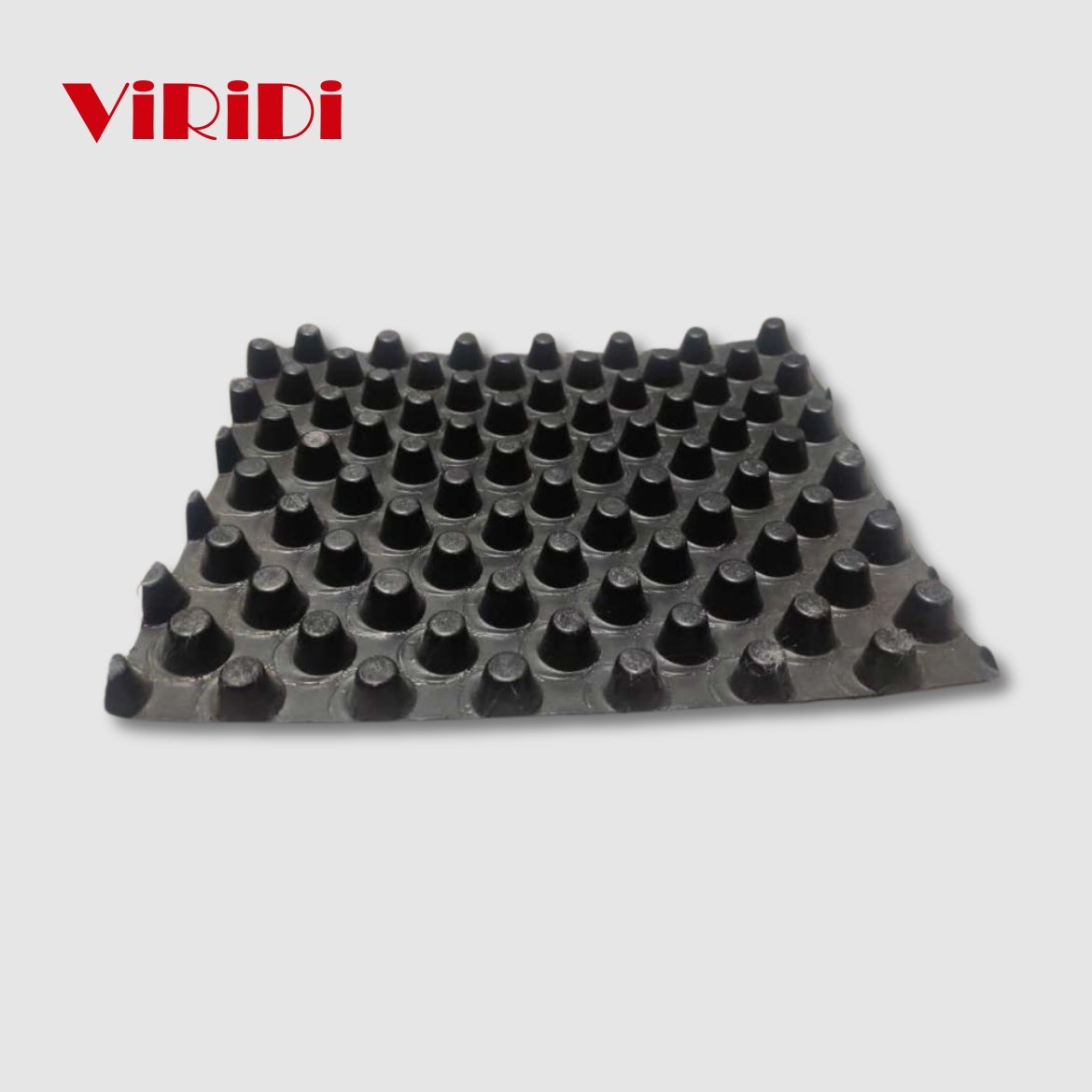

The dimple board, as shown, is a high-performance drainage and waterproofing solution designed to protect structures from water infiltration and manage moisture effectively. Its studded design creates an air gap that facilitates efficient drainage and provides superior protection against hydrostatic pressure. Available in various thicknesses (8mm, 10mm, 13mm, and 20mm), this durable product is perfect for applications like foundation walls, retaining walls, and green roofs, ensuring long-lasting protection and enhanced structural integrity.
- AVAILABILITY: AVAILABLE
- SKU: DIMP2025
Enquire Now
SHARE
| CHARACTERISTICS | STANDARDS | MEASURING UNIT | TOLERANCES | VALUES |
|---|---|---|---|---|
| Total Weight | EN 9864 | g/m² | ±5% | 1,250 |
| Dimple Weight | EN 9864 | g/m² | ±5% | 1,050 |
| Dimple Height | EN 9863-1 | mm | ±10% | 20.00 |
| Compression Strength | kN/m² | ±20% | >160 | |
| Tensile Strength LD / TD | EN 12311-2 | kN/m | -20% | >7.5 / >7.5 |
| Elongation At Max Load MD/CMD | EN 12311-2 | % | >30 | |
| Contact Surface Dimple/Ground | cm²/m² | 1,300 | ||
| Surface Contact With Waterproofing | % | 55 | ||
| Dynamic Perforation Resistance | EN 918 | mm | 40 | |
| Air Gap Volume Between Dimples | l/m² | -20% | 7.9 | |
| Temperature Range | °C | -30 to +80 | ||
| Characteristic Opening Size | EN ISO 12956 | µm | 150 | |
| Water Permeability | EN ISO 11058 | m/s | 8 - 10-2 | |
| Drain Flow Capacity In Plane | EN ISO 12958 | m²/s | -20% | 3.1 - 10-3 |
| BEI | kN/m² | 20 | ||
| Reaction To Fire | Class 'E' | |||
| Resistance To Water Penetration | Waterproof (W1) | |||
| PACKAGE DIMENSIONS | ||||
| Roll Width | m | ±3% | 2.3 | |
| Roll Length | m | ±2% | 20 | |
